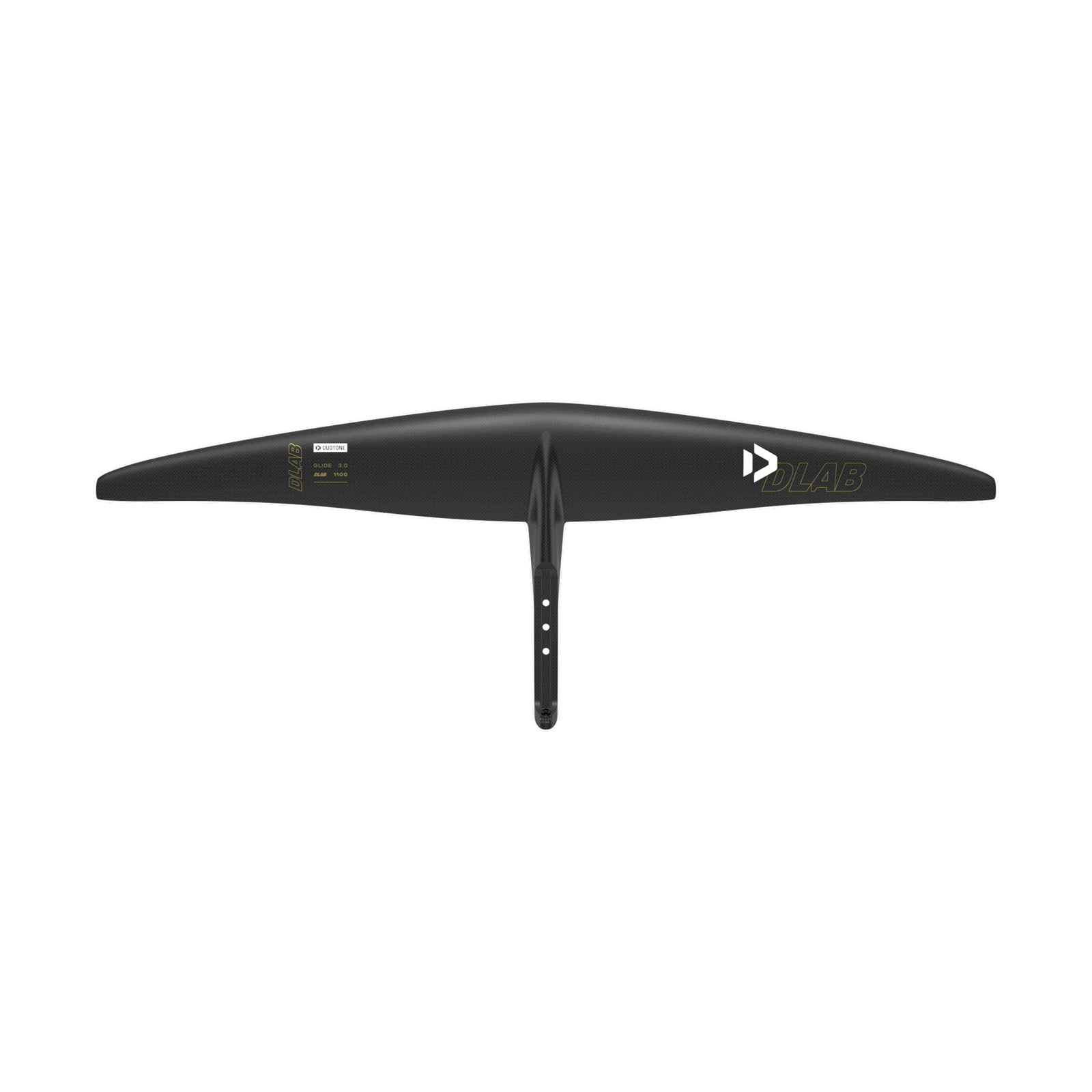

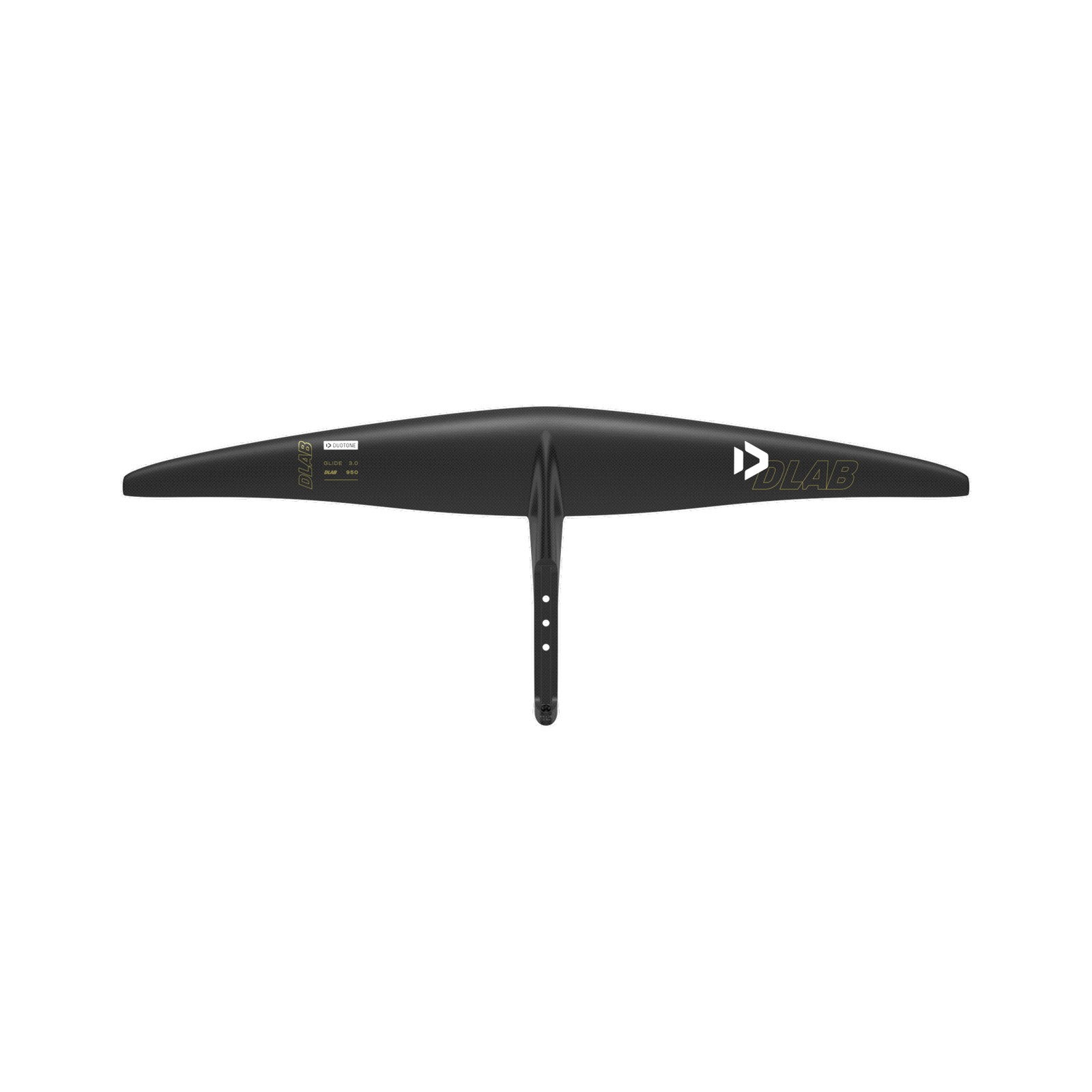

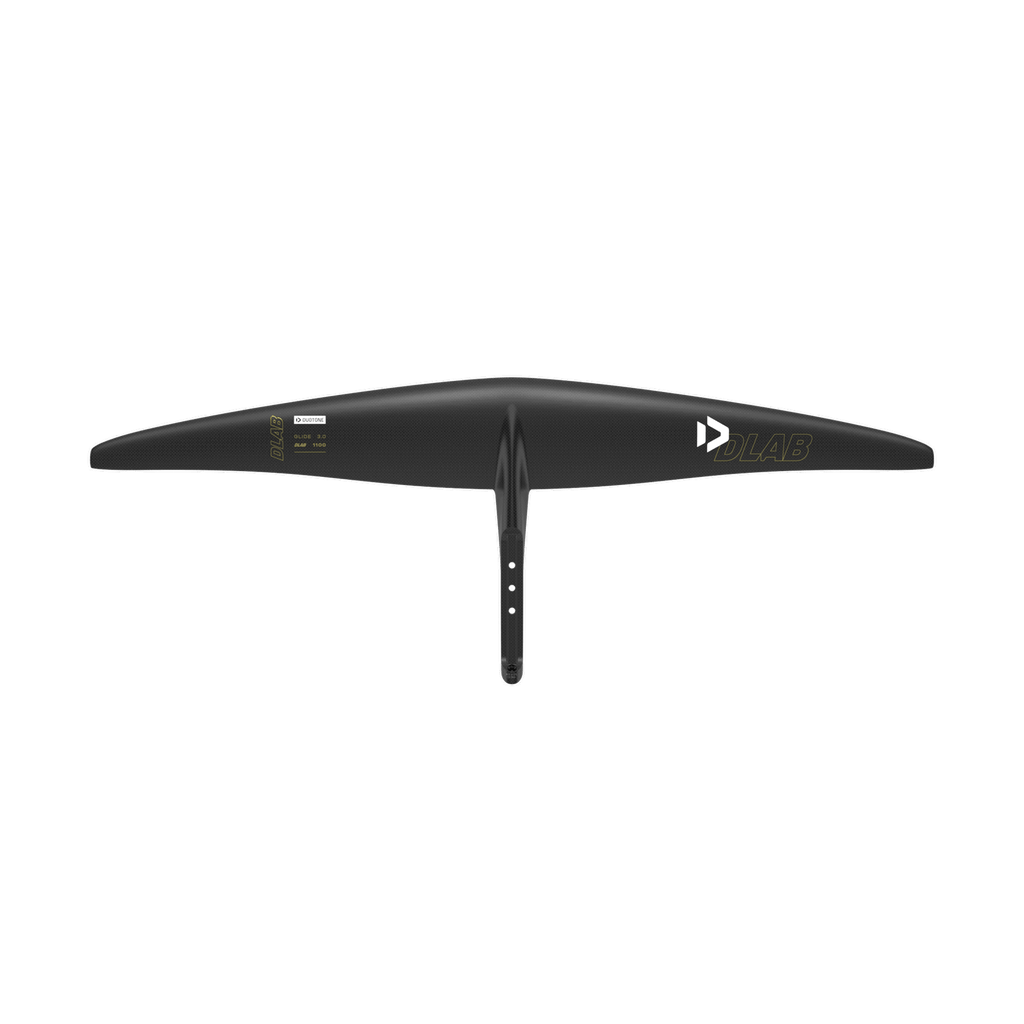

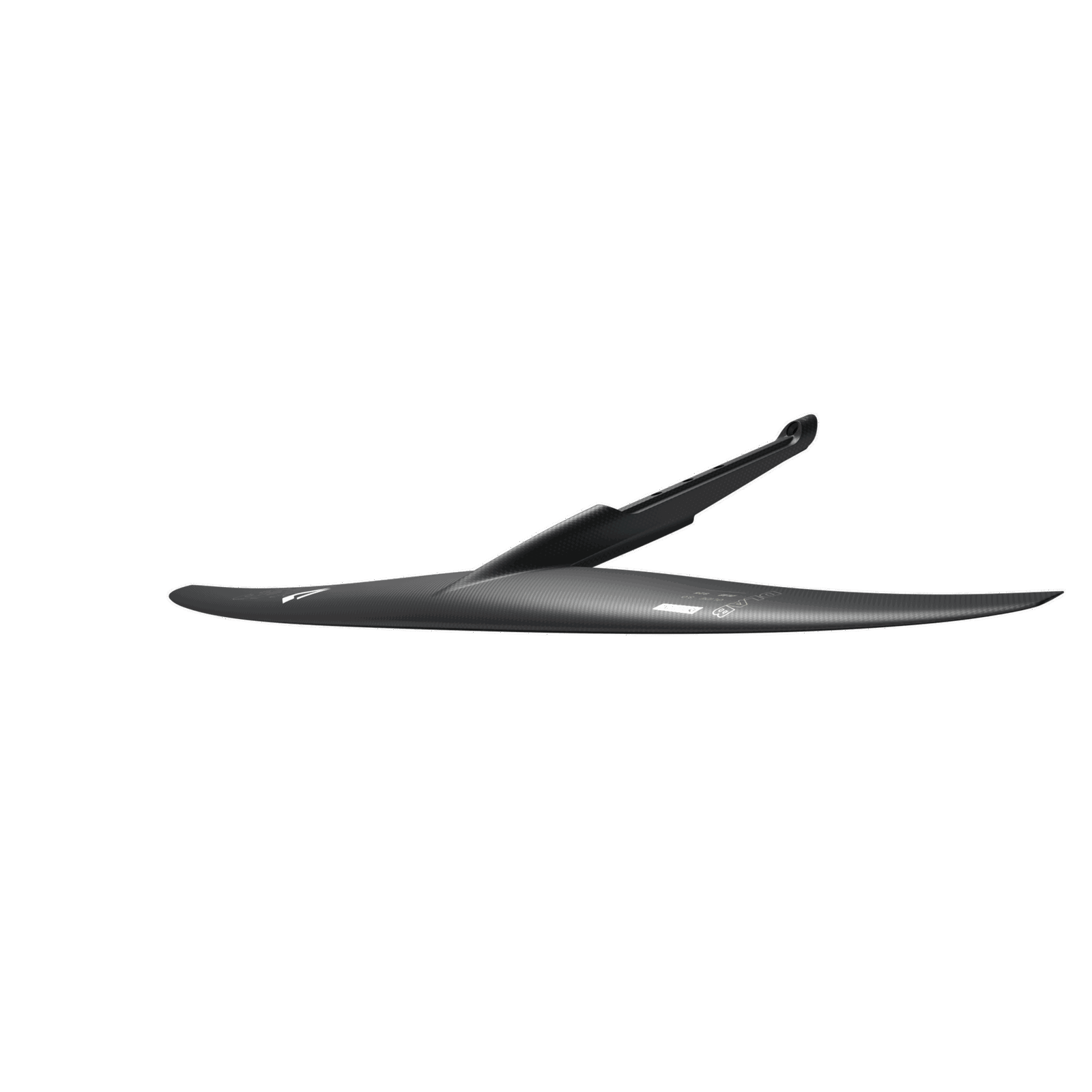

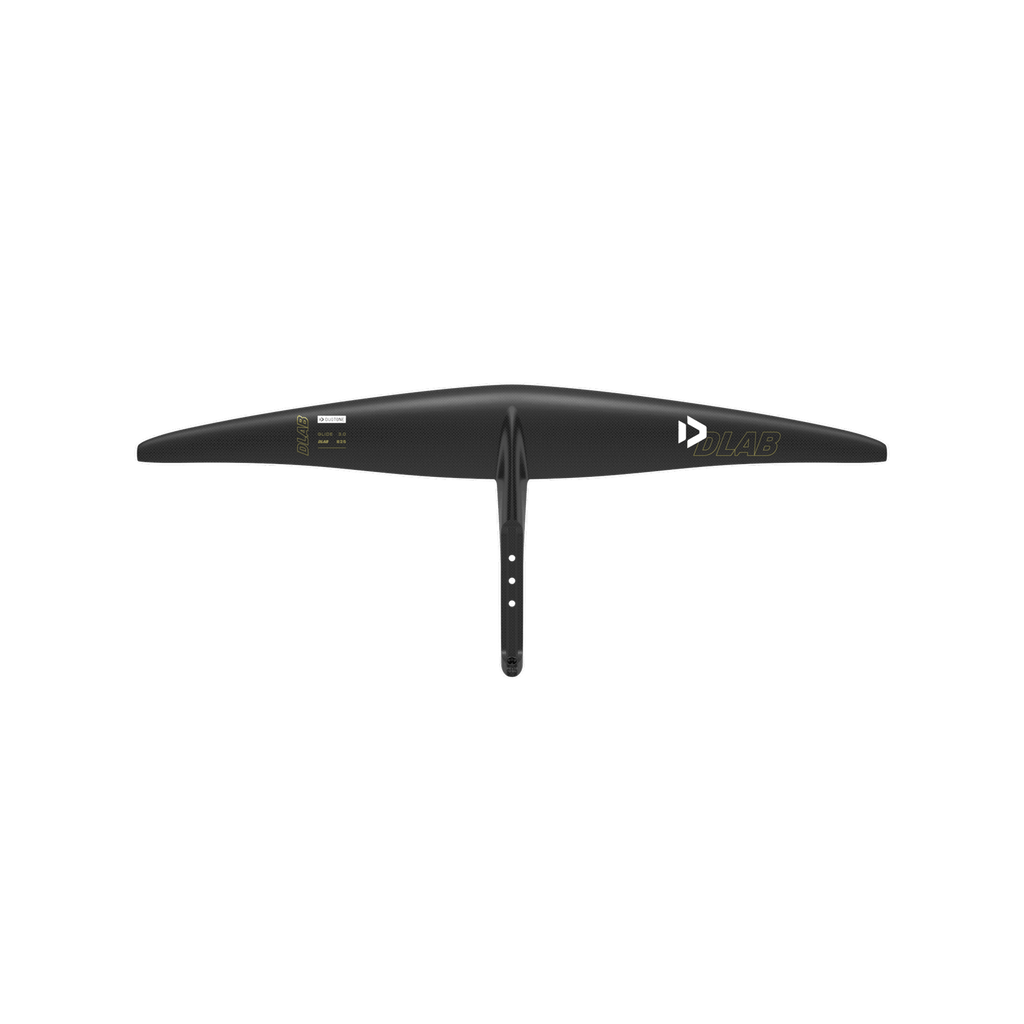

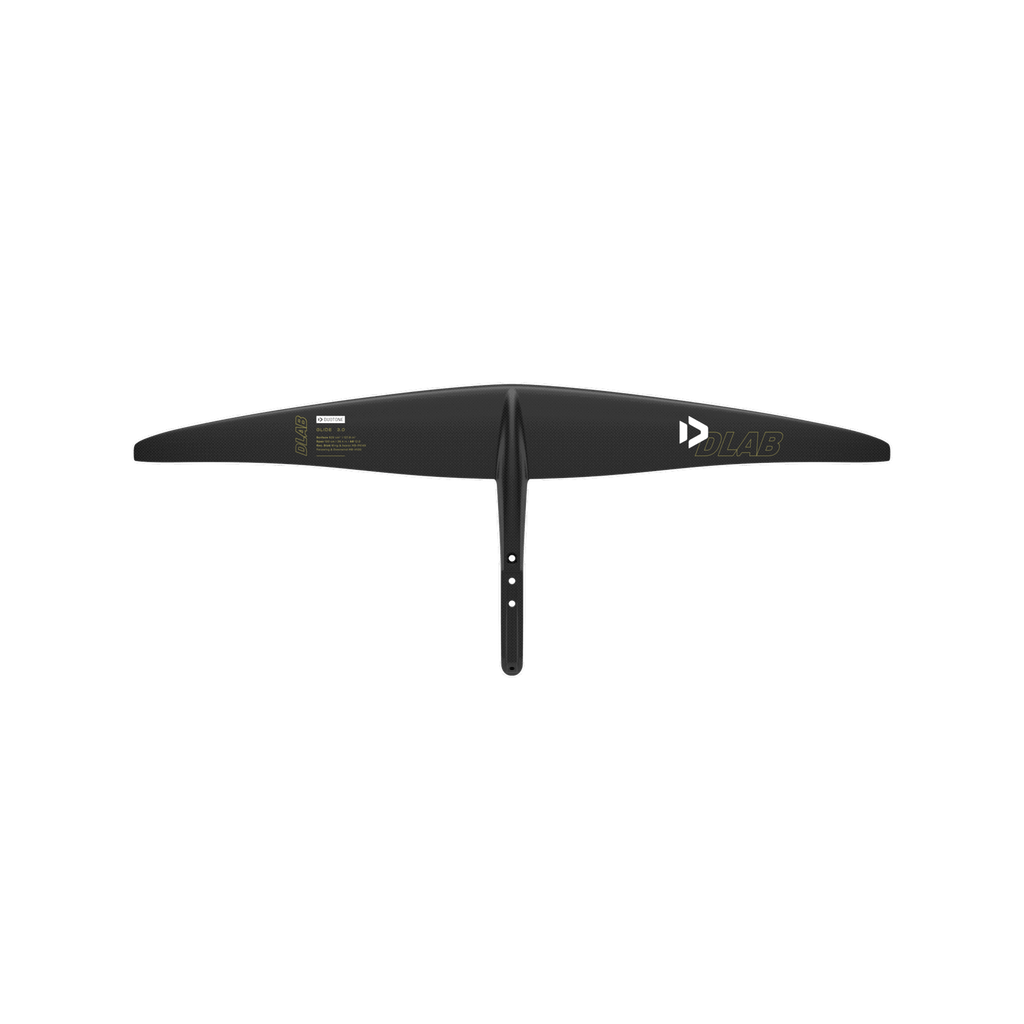

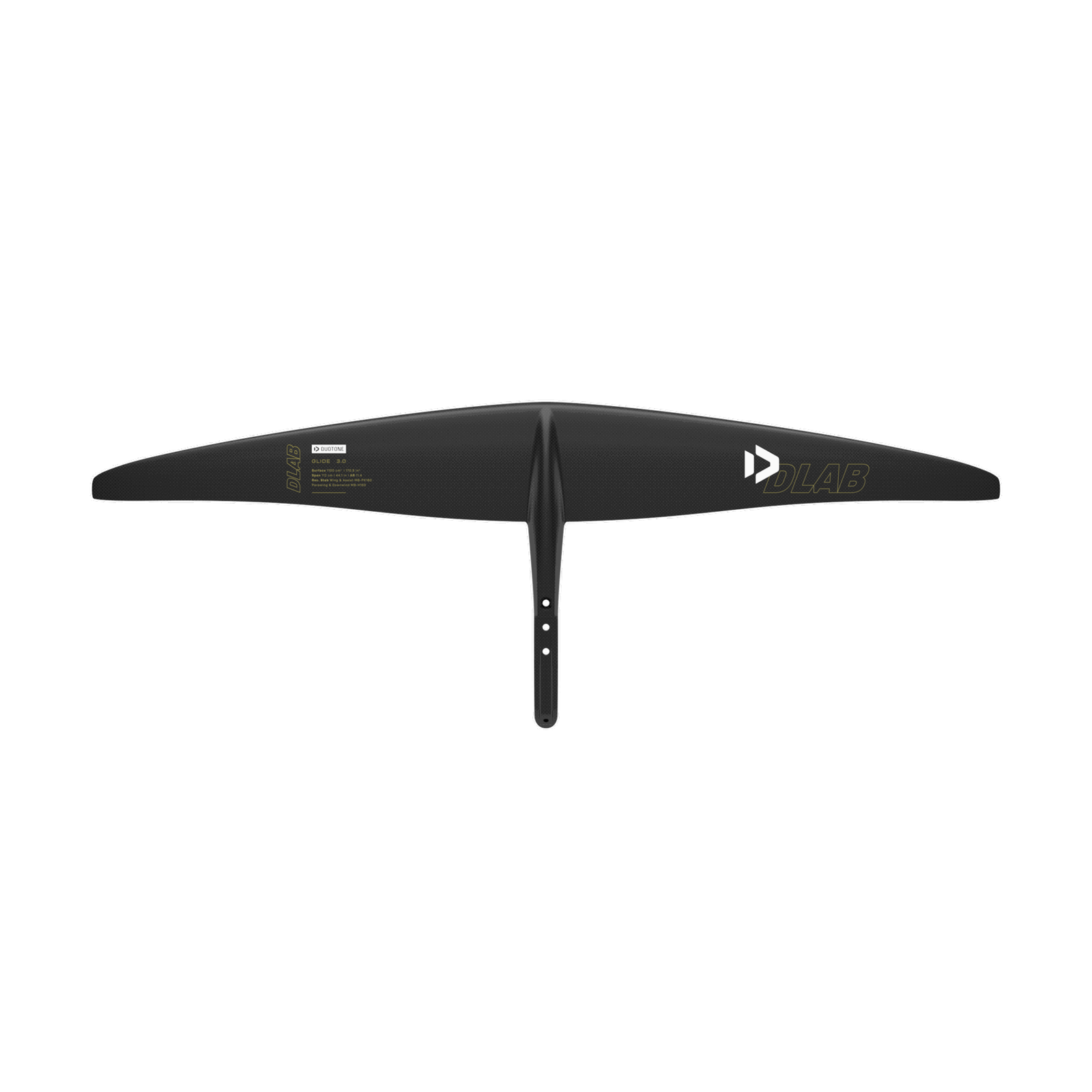

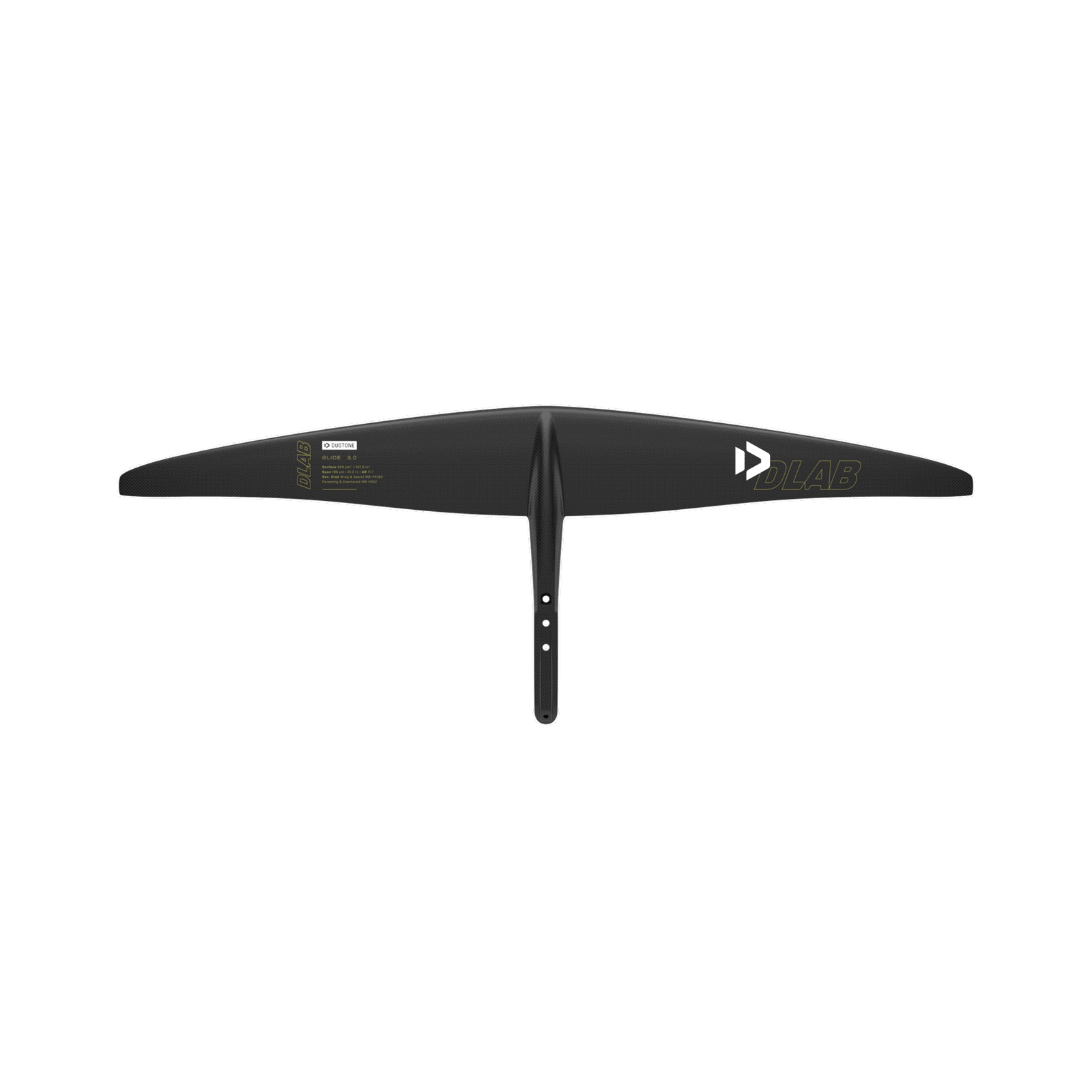

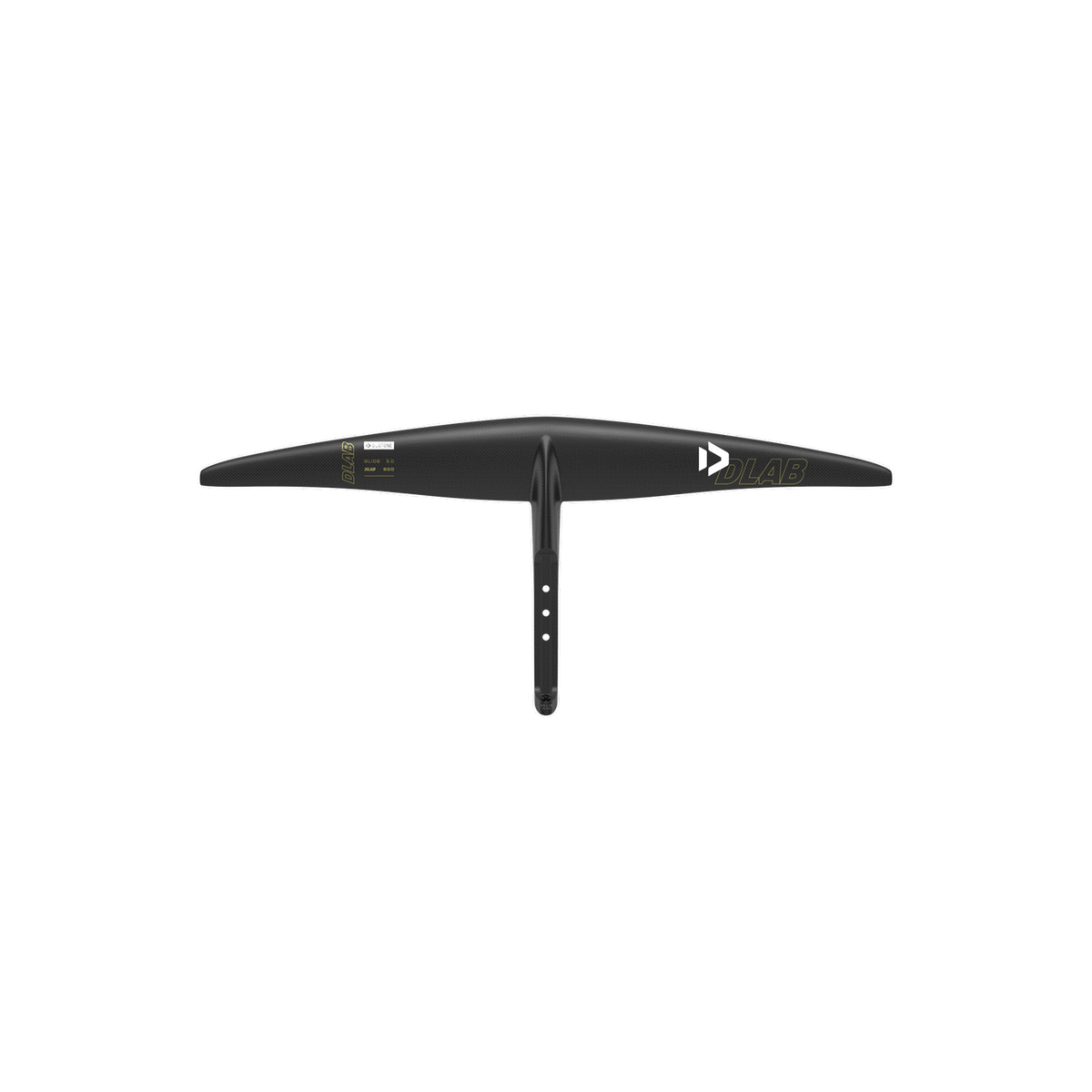

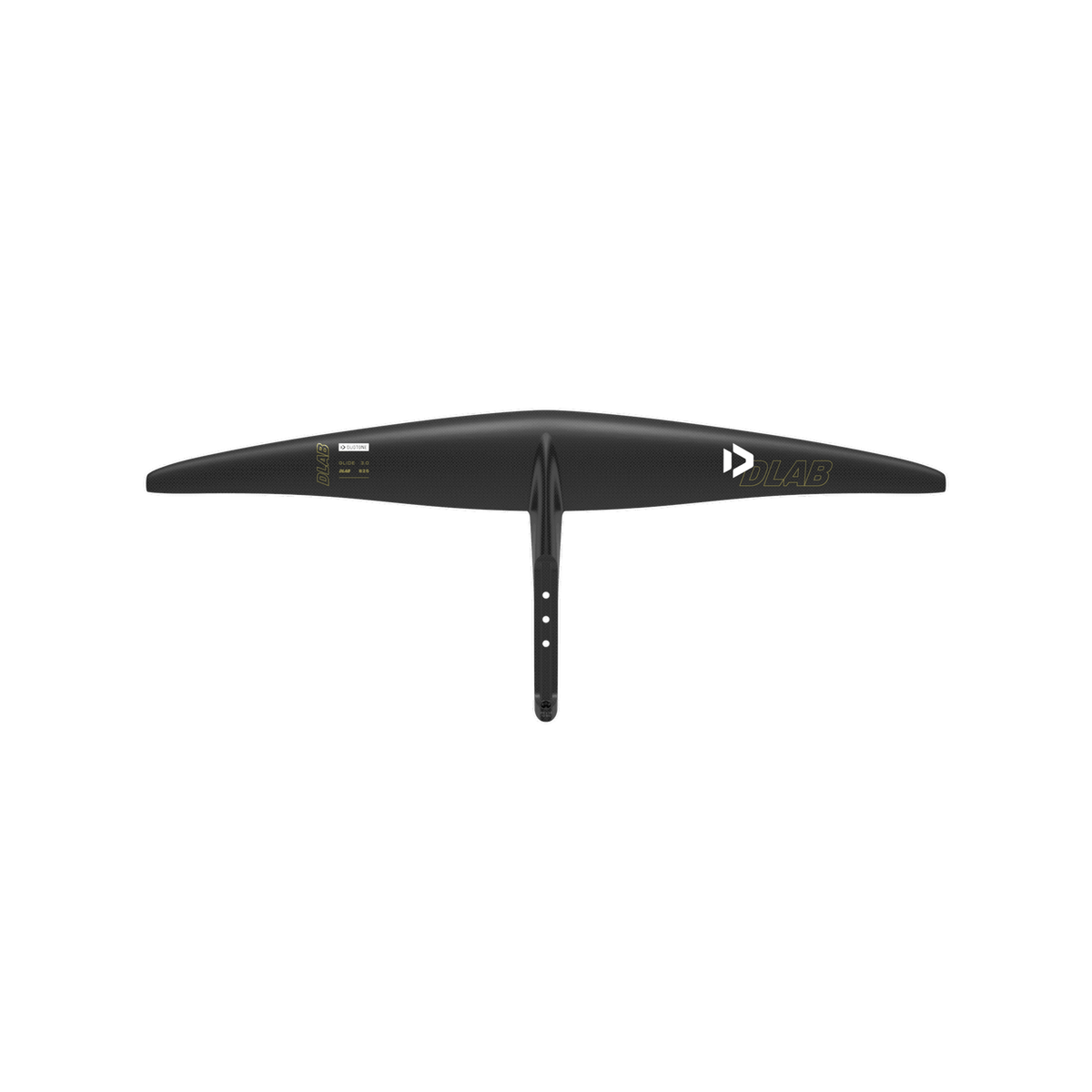

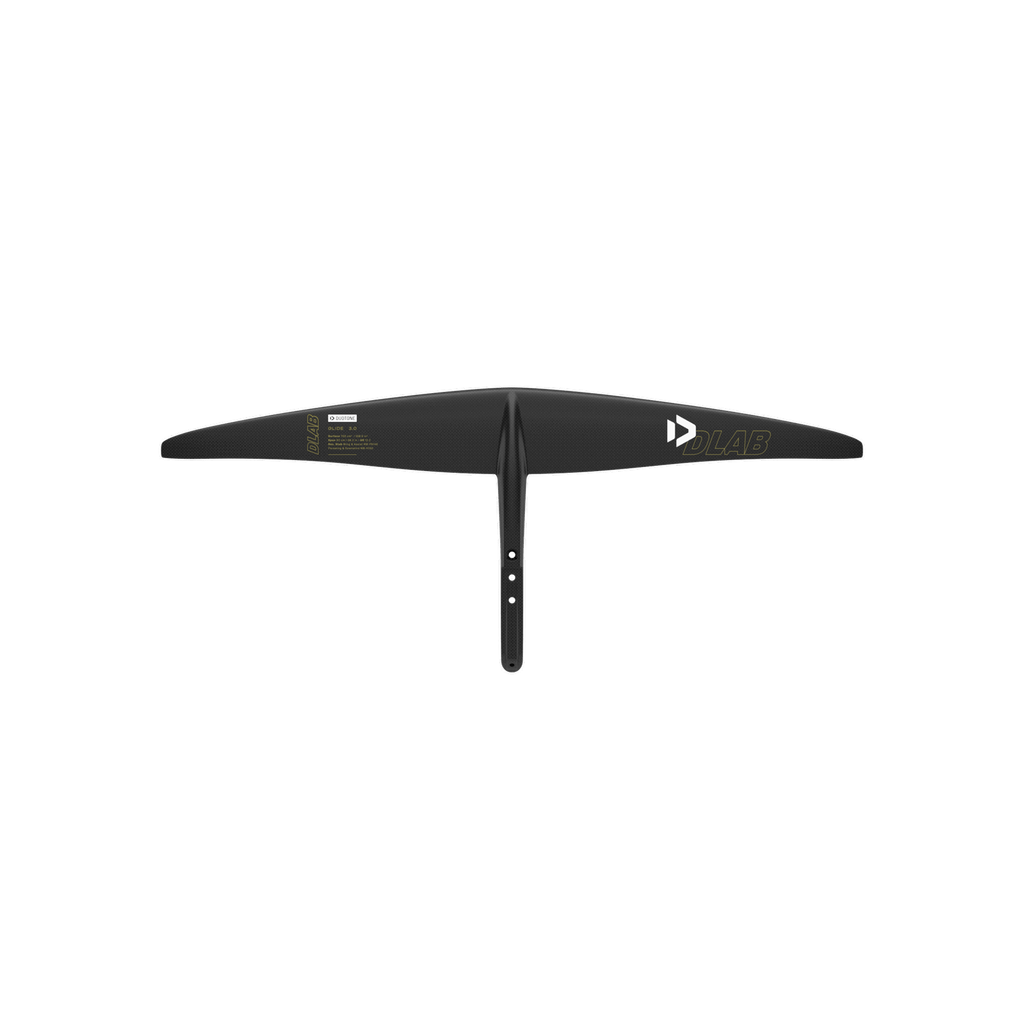

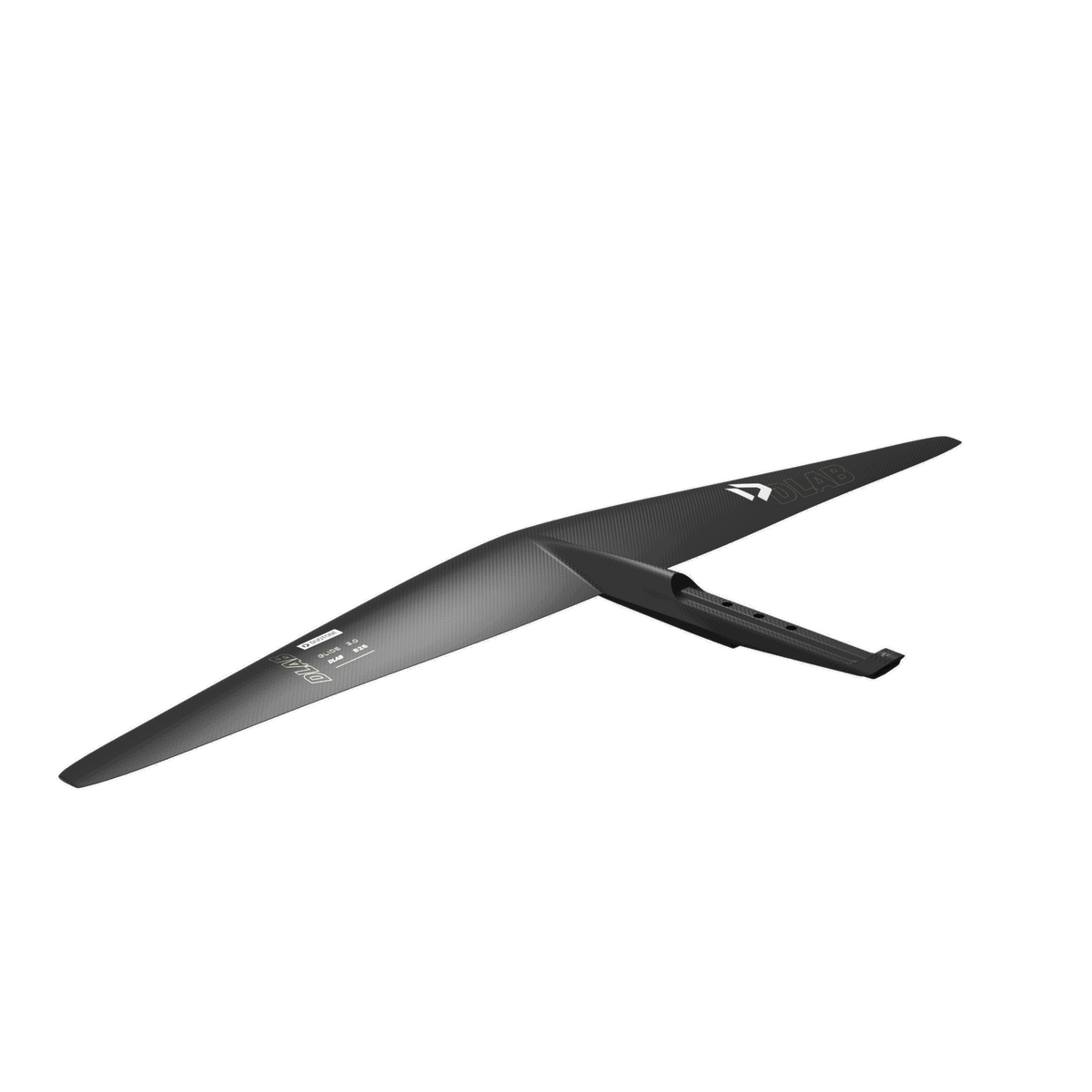

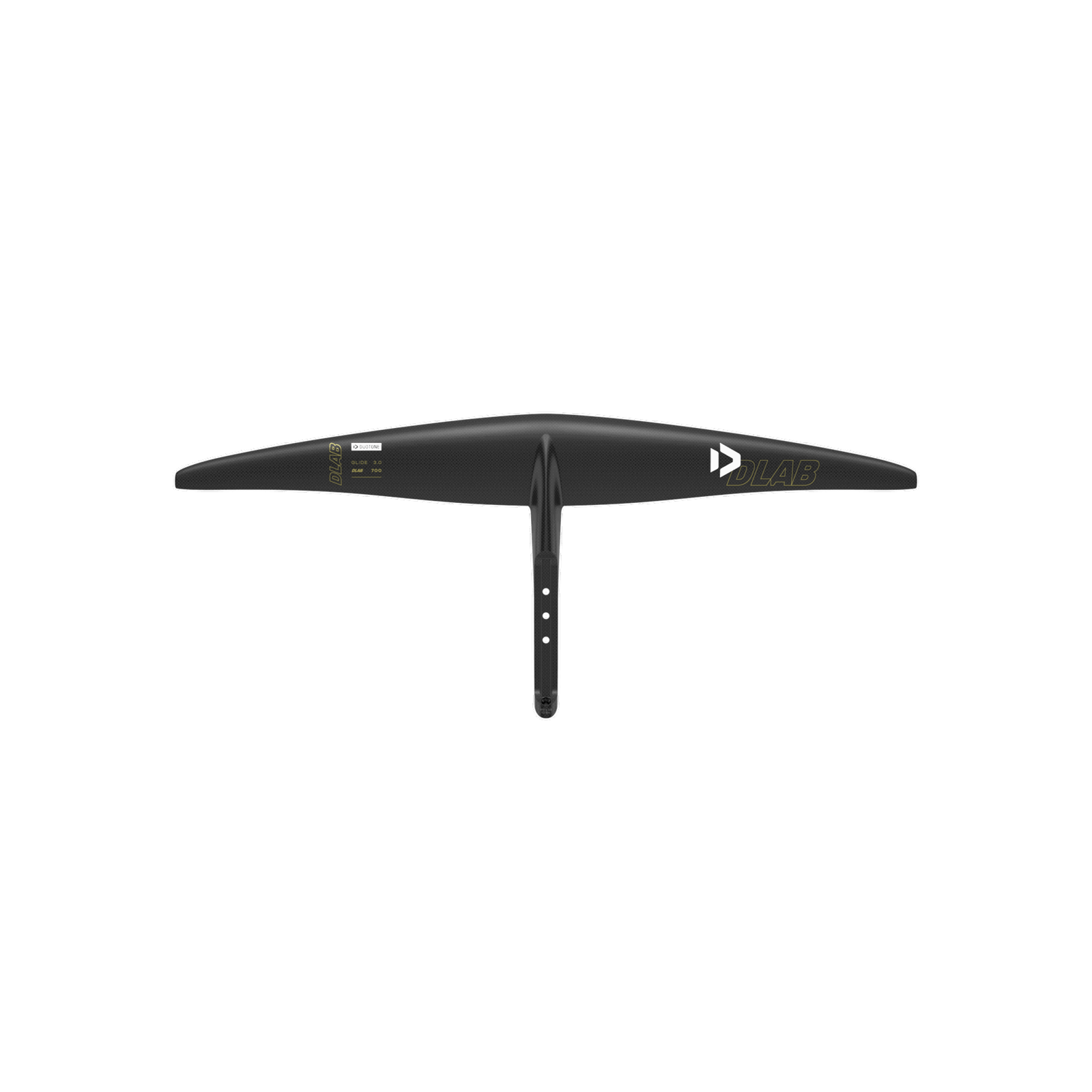

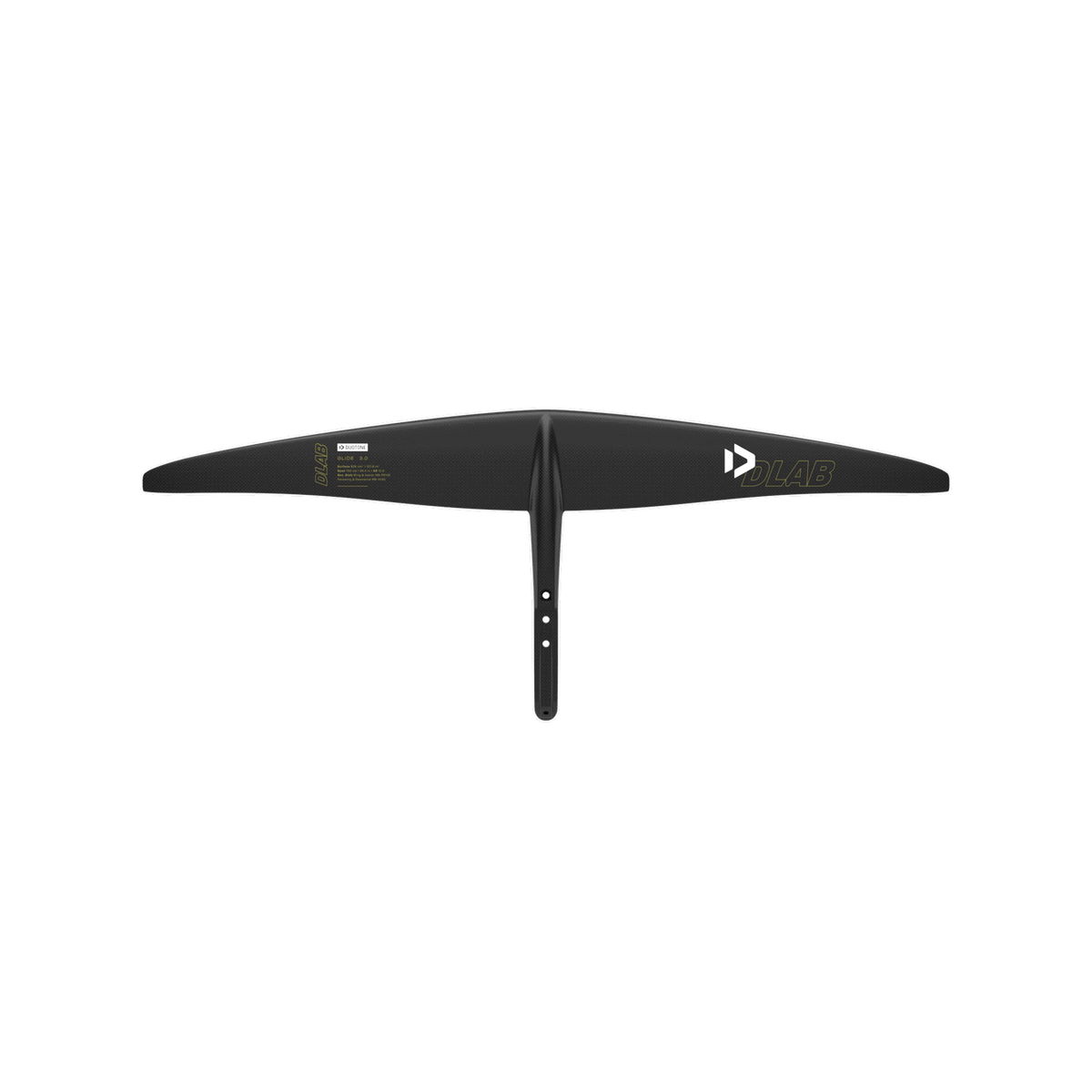

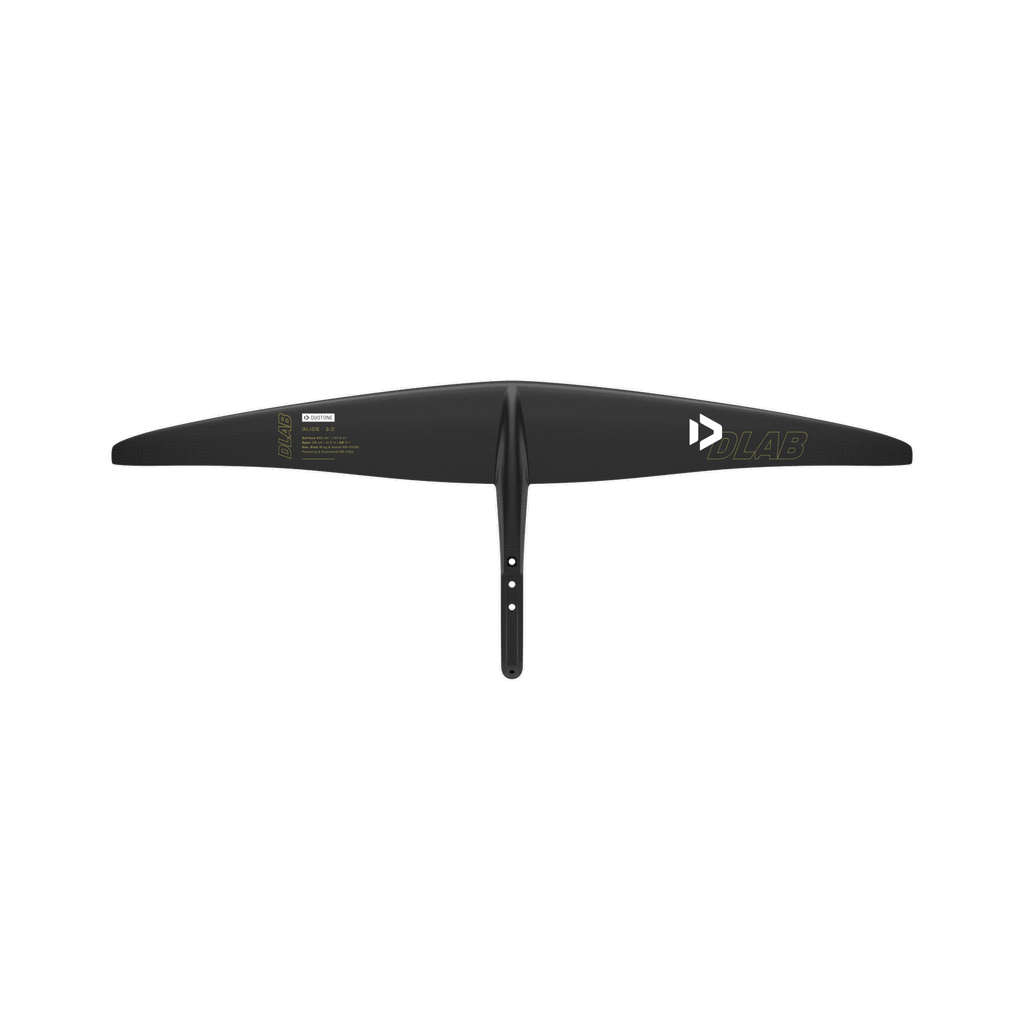

Duotone Front Wing Glide 3.0 D/LAB 2027

Wing Foiling / Prone / Parawing / Downwind

£689.00
Taxes included. Shipping calculated at checkout.

A high-aspect carbon front wing for efficient pumping, long glides and playful turns. Sizes 600–1100 cm²; 3BS+ connection. Front wing only: check tail, stabilizer and hardware compatibility.

Read product description

Coloruni
Size

Sizes and setup

Low stock
Pre-order now, dispatched as soon as stock arrives
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
9010583308272

Free UK standard delivery from £49.99

Price match guarantee

30 day hassle free returns

Trade-in available

Wing Foiling / Prone / Parawing / Downwind

Duotone Front Wing Glide 3.0 D/LAB 2027

Long glides, efficient pumping and a playful feel through the turn.

The Glide 3.0 D/LAB combines a high aspect ratio of around 12 with a Crest-inspired profile. The design focuses on efficient lift, easier pumping and longer glide phases across wing foiling, prone, parawing and downwind sessions.

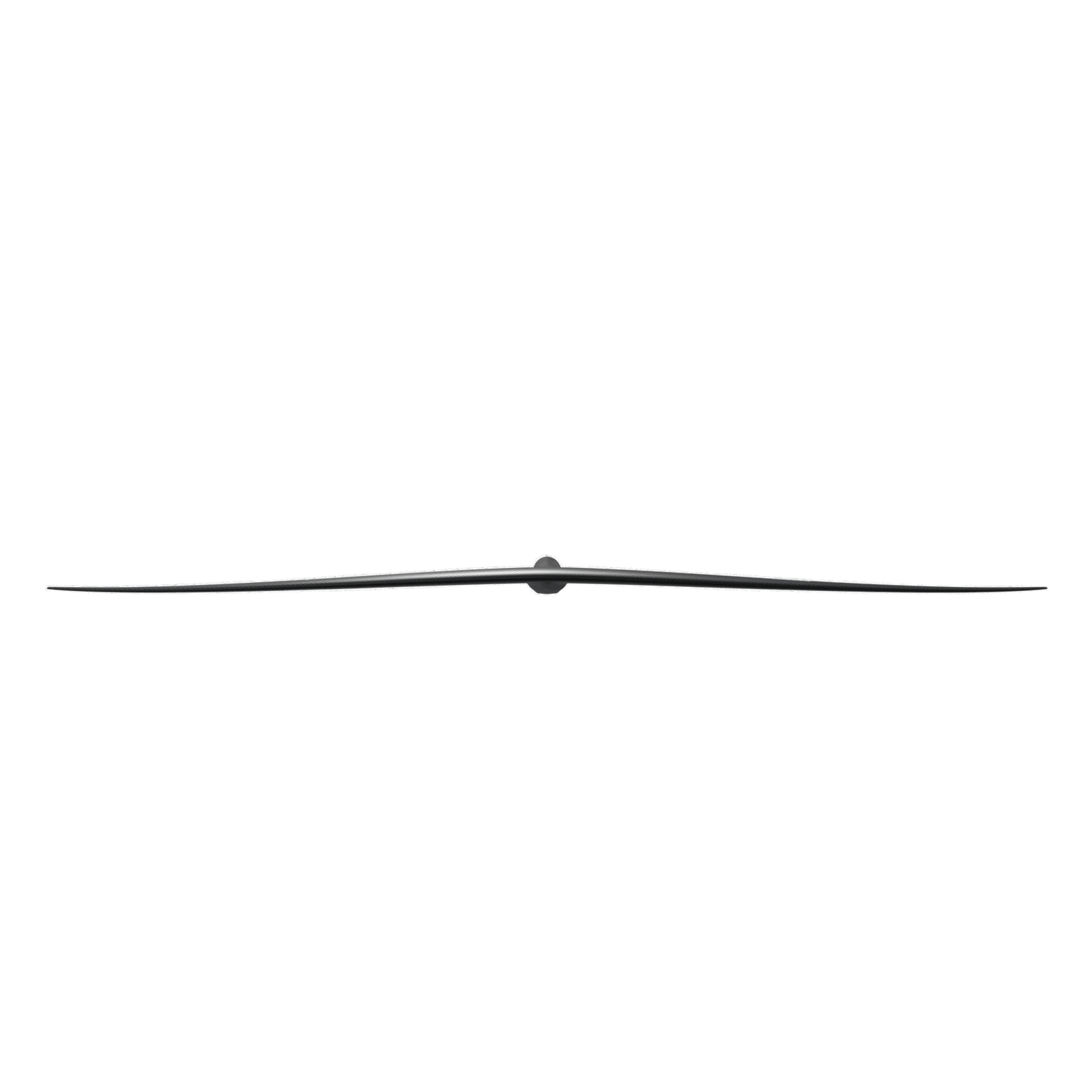

Upturned tips and the updated moustache curvature give a loose roll response through turns. The tips are designed to recover smoothly after a controlled breach, while the tapered chord helps retain energy through pumping and gliding.

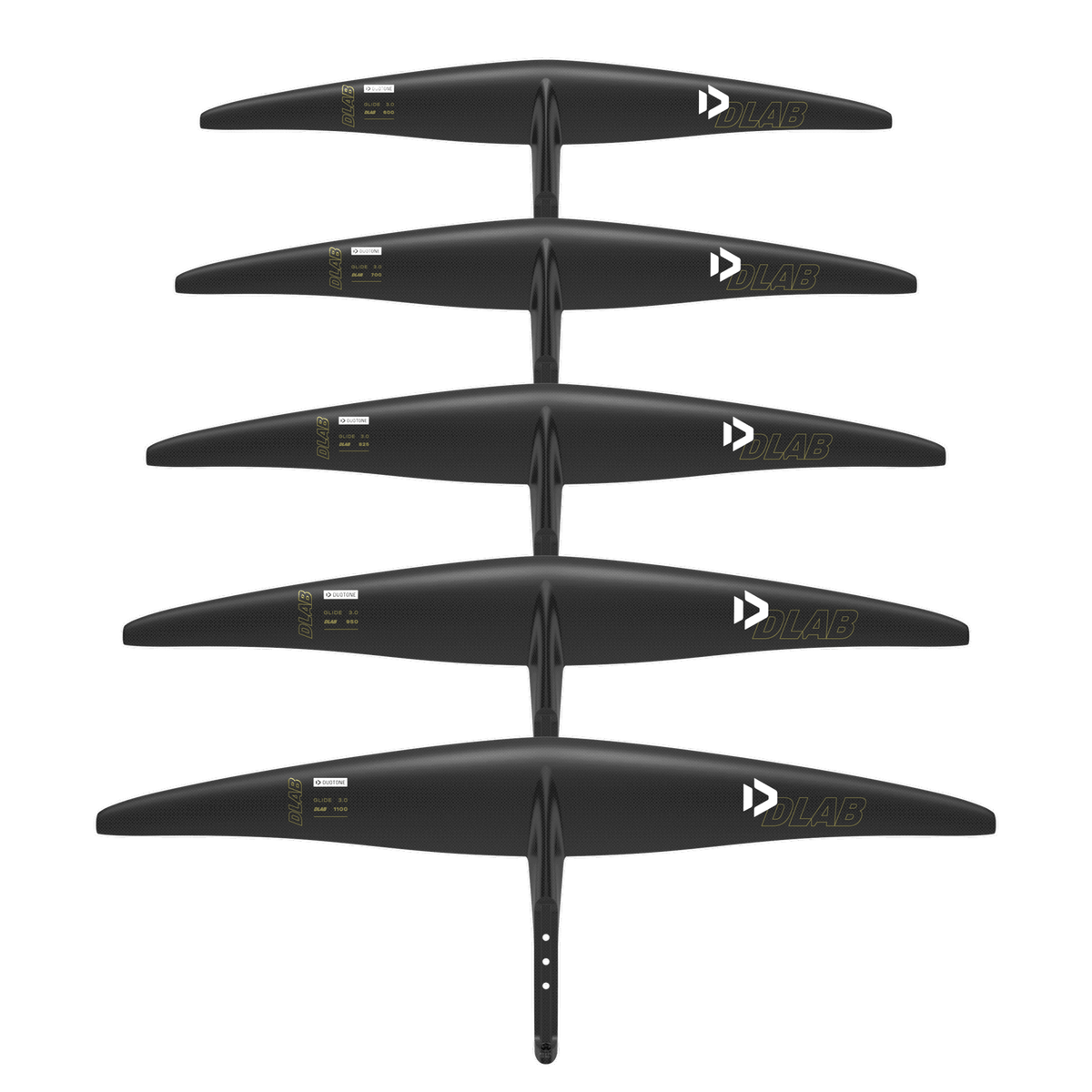

The D/LAB range runs from 600 to 1100 cm². Its 3BS+ connection supports an additional fourth screw for pitch stability. HM/IM carbon prepreg combines High Modulus and Intermediate Modulus fibres for stiffness and responsive handling.

This listing is for the front wing, not a complete foil. The 3BS+ connection works with D/LAB tails, H, S and PX stabilizers, and the new Monobloc tails. The additional fourth-screw option is M6 x 32 TX30; confirm the correct hardware for your setup.

For a larger size range, compare the Glide 3.0 SLS.

The official Tech Talk below covers both Glide 3.0 D/LAB and SLS. Lifestyle and setup photographs can show additional components, which are not included with this front wing.

Key features

Efficient glide

An aspect ratio around 12 supports long glide phases and energy-efficient pumping.

Easy low-end lift

The Crest-inspired profile helps with lift and pumping as power drops.

Playful turns

Moustache curvature and upturned tips give a loose, responsive roll feel.

Breaching control

Upturned tips are designed for controlled breaches and smooth recovery.

Multi-discipline use

Designed for wing foiling, prone, parawing and downwind riding.

3BS+ connection

An additional fourth-screw option supports pitch stability.

Product details

Duotone Front Wing Glide 3.0 D/LAB 2027
Duotone Front Wing Glide 3.0 D/LAB 2027
Duotone Front Wing Glide 3.0 D/LAB 2027
Duotone product and technical video

Sizes and setup

Glide 3.0 D/LAB 2027 specifications
Area (cm²)Span (cm)Aspect ratio
6008612.4
7009212.2
82510012.0
95010511.7
110011211.4
Recommended stabilizers
Area (cm²)Wing / assistProne / parawing / downwind
600MB-PX145MB-H130
700MB-PX145MB-H130
825MB-PX145MB-H130
950MB-PX160MB-H150
1100MB-PX160MB-H150

Stabilizer entries are the manufacturer’s recommended pairings and are not included with the front wing. Size choice also depends on rider weight, experience, board, conditions and discipline.

Connection: 3BS+. Fourth-screw compatibility: M6 x 32 TX30. Confirm which fasteners your setup requires; this listing does not promise an included fourth screw.

Choosing your setup

The 3BS+ connection works with D/LAB tails, H, S and PX stabilizers, and the new Monobloc tails. The additional fourth-screw option is M6 x 32 TX30; confirm the correct hardware for your setup.

Tell our shop team your weight, discipline, board, usual conditions and the exact mast, fuselage, tail and stabilizer you already use. We can help check the combination and select a size. The table is a setup guide, not a guarantee that every existing foil component is compatible.

Duotone Front Wing Glide 3.0 D/LAB 2027
Duotone Front Wing Glide 3.0 D/LAB 2027
Duotone Wing Foiling - Duotone Front Wing Glide 3.0 D/LAB - The Kitesurf Centre

Tech features

HM/IM carbon prepreg

High Modulus and Intermediate Modulus carbon fibres provide stiffness and response.

1 / 1
    Season 2027
    Composition High Modulus / Intermediate Modulus carbon prepreg
